Can be customised to your needs and your preferred language as required. Please contact us for pricing and more information.
Technical specification for all materials used by Signiatec Ltd in the production of signage for Unitech.
Sign type: Aluminium.
- Grade: 1050AH14 VC1-70
- Material thickness available: 1mm, 1.5mm, 2mm, 2.5mm, 3mm, 4mm, 5mm up to 25mm
- Standard sheet dimensions: 2.4m x 1.2m & 3m x 1.5m
- Paint finish: Polyester powder coated paint finish.
- Paint thickness: 76ums (microns)
Sign type: Dibond.
- Description: Composite aluminium panel.
- Material thickness available: 3mm, 6mm, 12.5mm, 8mm, 16mm
- Dibond has an aluminium skin on both sides with a thickness of 0.008mm
Sign type: PETG
- Description: Clear petg suitable for thermoforming
- FDA approved(food grade approved)
- UV stable.
- Material thickness available: 1mm, 1.5mm, 2mm, 2.5mm, 3mm, 4mm, 5mm
Sign type: PVC Banner.
- Description: This material is 510g /mtr sq front-lit (front printed)
- PVC banner has a high tear resistance.
Sign type: High bond tape for affixing signage.
- Material: 3M 468MP
- Solvent resistant.
- Moisture resistant.
- Performance range: Temperature of -30 deg Celcius to + 149 deg Celcius.
Sign type: Eyelets for signage.
- Types available: Nickel Brass Clear plastic.
- Standard size is No4.
- Hole diameter: 12mm
- Overall eyelet diameter: 24mm

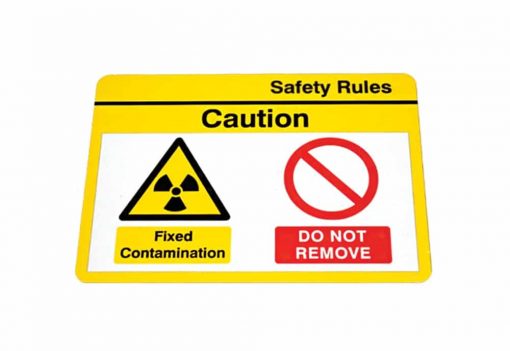

Warning and information for relevant areas
